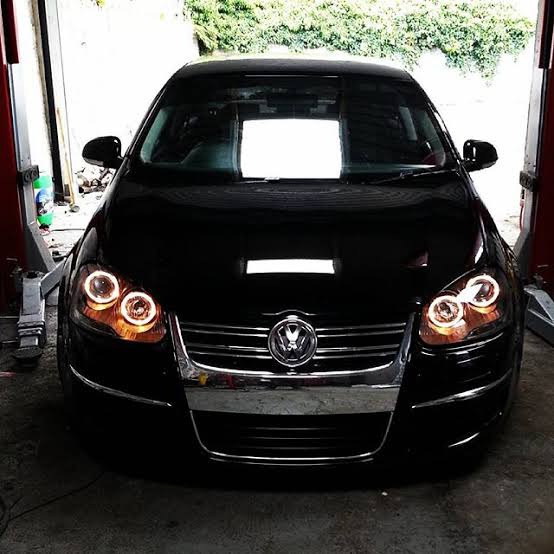

Projector housings use a lens to focus the LED output into a tight, controlled beam with a sharp cutoff line, which reduces glare for oncoming drivers and delivers more usable light on the road. Reflector housings scatter light more broadly, and while they work adequately with factory halogens, LED bulbs in reflector housings often create hotspots and excessive glare because LEDs emit light from a single point rather than a distributed filament. For the Mk5 specifically, projector setups are the better choice if you drive frequently at night or on unlit roads.

Standard LED bulbs in the Mk5 frequently trigger the CANbus error detection system, causing bulb-out warnings on the dashboard and rapid hyperflashing in indicators. A Canbus-compliant kit includes built-in resistors or load equalizers that mimic the electrical draw of the original halogen bulbs, eliminating those errors without any additional wiring. If you want a clean install with no dashboard warnings, the Canbus option is worth the 20 – 40% price premium over a basic LED conversion.

6000K produces a cool white light with a slight blue tint that looks visually sharp but can reduce contrast in fog, rain, or snow because short-wavelength blue light scatters more in moisture. 4300K sits closer to natural daylight and maintains better visibility in adverse weather while still being noticeably brighter and whiter than the stock 3200K halogens. If you drive primarily in clear conditions and want the modern white look, 6000K is fine, but 4300K is the safer all-weather choice.

Raw lumen ratings measure total light output, not how much of that light actually reaches the road in a useful pattern. An LED bulb producing 6000 lumens in a housing designed for a halogen filament can throw a large portion of that light upward or sideways, wasting output and blinding other drivers rather than illuminating the road ahead. Effective brightness depends on how well the LED chip's position matches the focal point of the Mk5's headlight housing, so a well-positioned 3000-lumen LED will often outperform a poorly aligned 6000-lumen unit.

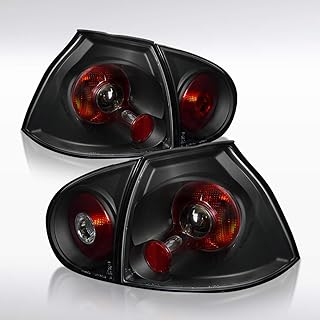

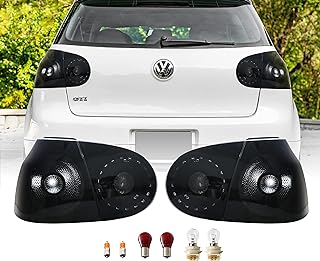

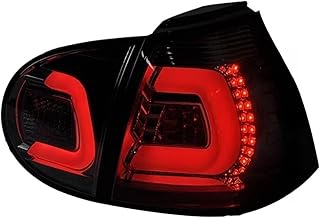

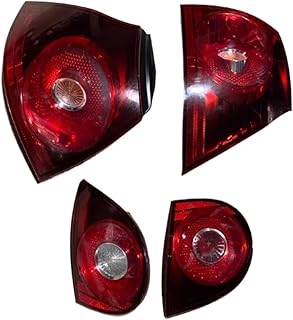

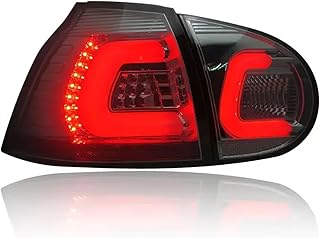

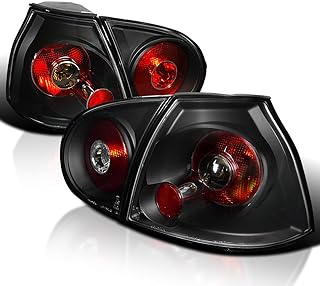

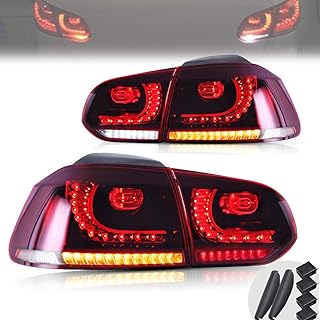

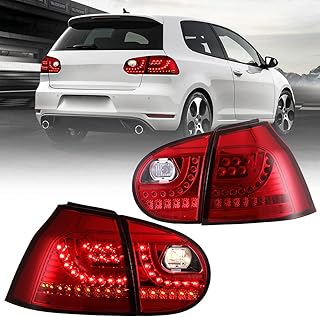

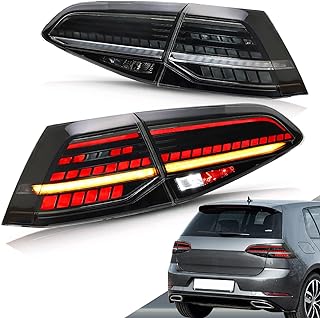

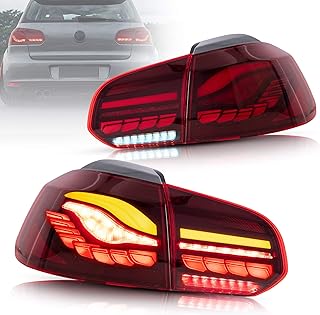

Most aftermarket Mk5 tail light assemblies are designed as direct replacements for the OEM units and use the same connector plugs, so no rewiring is needed in the majority of cases. However, LED tail lights draw significantly less current than the original bulbs, which can cause the Mk5's turn signal circuit to hyperflash at roughly twice the normal rate without a load resistor or a Canbus-compatible relay. Check whether the kit includes these resistors before purchase, or budget for them separately, to avoid a simple install turning into a troubleshooting session.

Quality LED headlight bulbs are rated for 30,000 to 50,000 hours of operation, but heat management is the primary factor that determines whether they reach those figures in practice. The Mk5's headlight housing has limited ventilation, so LED kits with inadequate heatsinks or fans can run hot enough to degrade the LED chip and onboard driver circuitry well before that rated lifespan. Most reputable manufacturers offer a two- to three-year warranty, which is a reasonable proxy for build quality – units with warranties under one year typically use lower-grade components.
